Navori
Digital Signage Software

The Second Generation of digital signage has arrived.

Advanced features include:
Basic to Enterprise Level Options
PC, Mac, Linux Admin
Easy to Use Interface
User Rights Control
Multi-Level Scheduling
High Performance Player
Screen Zoning

Digital Signage Success starts here.

Casio Projector

Casio Pro Projectors

20,000 HOURS - LAMP FREE & STRESS FREE

The new Casio projector includes a new Hypbrid technology providing a light source life of up to 20,000 hours, up to 10x longer than any other projector.

The Casio Pro versions are ideal for Digital Signage, AV installations, Education and Training requirements. The features of these new Hybrid models reduces your overall Operating Expenditure over the life of the projector.

Standard and Short Throw Options

The Casio Pro Projectors are available in a standard lens model with 3000, 3500 or 4000 ANSI Lumens and a short throw lens with 2500 or 3000 ANSI Lumens.

Mercury-Free Light Source

Since Casio hybrid light source projectors are mercury-free, they present less of a hazard to recycling centers or landfills. But in addition, you can avoid mercury contamination caused by a broken mercury lamp and make your home, classroom and work environments safer too.

Superior Colour

One of the benefits of the hybrid light sources is an increased color gamut – these projectors will show about 50% more of the spectrum (compared to our previous mercury lamp projectors), for more accurate renditions, subtle shadings. Images appear brighter as well.

Cost Effective

Compared with conventional high-brightness projectors employing mercury lamps, Casio's Hybrid Light Source technology reduces operating costs as well as the time and effort involved in lamp exchange while maintaining clear, high-quality images over an extended period.
The lamp free design is backed by a comprehensive 3 year warranty including 3 years or 6000 hours on the light source; users can expect reliable worry free operation from Casio Projectors

Consistent Brightness

Your presentation will be as bright the 100th time you show it, as it was the first time. Casio's hybrid light source reduces brightness degradation dramatically. Unlike mercury lamp projectors, which lose half their brightness after 3,000 hours of use, Casio HLS keep showing your work in the best possible light.

Need more information?

For any questions about how a Command Digital Signage System would be suitable for your business or to arrange a time for an on-site or on-line demonstration, please contact us on 1300 780 204 or through our enquiry form.

Command products and solutions are also available through your local AV and IT professionals.

  • Features
  • XJ-H1650 Specifications
  • XJ-ST155 Specifications
  • Gallery

Features

Quality build.
20,000 Hour Lamp Life provides lower cost of ownership.
Standard Lens and Short-Throw Lens Option.
Environmental friendly Mercury-Free lamps.
Superior Colour.
Consistent brightness for a longer period of time compared to standard lamps.

XJ-H1650/XJ-H1600 Specifications

Model XJ-H1650 XJ-H1600
Brightness*1 3500 ANSI lumens
Contrast ratio 1400 : 1
Keystone correction +30° (auto) ±30° (manual)
Focusing Manual focus
Projection lens 1.2X optical zoom lens (manual)
Projection screen size 27 ~ 300-inch
Projection range 60-inch-screen: 1.9m ~ 2.3m,
100-inch-screen: 3.3m ~ 3.9m, Minimum range: 0.85m
Projection system DLP® system
Display element XGA 0.7-inch DLP® chip 786,432 pixels (1,024 x 768)
Color reproduction Full color (16.77 million colors)
RGB Display resolution XGA Real (1,024 x 768)
Compressed: Maximum UXGA (1,600 x 1,200)
Input terminal RGB mini D-Sub 15 pin x 2
(Also serves as YCbCr/YPbPr input terminal.)
Output terminal RGB mini D-Sub 15 pin x 1
Digital input Input terminal HDMI Type A x 1 (480P ~ 1080P)
Video input Signal system NTSC/PAL/PAL-N/PAL-M/PAL60/SECAM
Input terminal Composite (RCA) terminal x 1,
S-Video terminal x 1,
Component: Also serves as RGB mini D-Sub 15 pin.
Audio Input/output terminal RCA x 1 (R/L), Stereo mini-jack x 2
Speaker 10W monaural
Other
terminals
USB host USB (2.0-compliant) Type A x 1 (USB terminal on rear)**2 -
USB function*3 USB (2.0-compliant) Type B x 1 (USB terminal on rear) -
Control terminal RS-232C (mini D-Sub 9 pin) x 1
LAN terminal RJ-45 x 1 -
Wireless compatibility IEEE 802.11b/g*4 MobiShow® compatible -
Power source AC 100V ~ 240V, 50/60Hz
Power consumption Operating power: 350W (with Eco Mode “Eco 1” selected), 430W (with Eco Mode Off “Bright” selected) / Standby power consumption: 0.4W*5
External dimensions (WxHxD) 400 x 106 x 323mm (including projections)
Weight 7.1kg
Remote controller Wireless remote controller
Security compatibility Kensington-compatible, Power-on password
Other functions DLP® 3D projection, Intelligent Brightness Control, Interactive pointing function (XJ-H1650 only), Closed captioning, Direct power-ON, Direct power-OFF, Digital zoom (2X), Rear projection, Freeze, Pointer, Color mode, Eco mode, Blank, Ceiling mount*6
Main accessories Wireless remote controller / AC power cord / RGB cable / Instruction manual (on CD-ROM)*7 / Quick reference / Warranty card / Soft case

*1 Eco Mode Off "Bright" projection
*2 Connectable equipment: Wireless module for wireless connection; Multi-projection camera YC-430/400 (Note, however, that a higher version of multi-projection camera firmware may be required when connecting a multi-projection camera directly to the projector.); CASIO digital cameras /USB memory (commercially available, but compatibility with all USB memory devices not assured; compatible digital camera models and confirmed-compatible USB memory devices to be published on the CASIO Web site)
*3 For use with the interactive pointing function
*4 A wireless module that attaches to the USB terminal on the rear of the projector body is supplied.
*5 Except when connected to a network
*6 Metal ceiling-mount fittings required; installation work charged separately.
*7 Accessory software provided on CD-ROM is compatible with Windows® 7 (32/64 bit), Windows Vista® (32/64 bit) and Windows® XP SP3.

XJ-ST155 Specifications

Model XJ-ST155
Brightness*1 3000 ANSI lumens
Contrast ratio 1800 : 1
Keystone correction +30° (auto) ±30° (manual)
Focusing Manual focus
Projection lens Fixed focus lens
Projection screen size 45 ~ 142-inch
Projection range 60-inch-screen: 0.8m,
100-inch-screen: 1.4m, Minimum range: 0.6m
Projection system DLP® system
Display element XGA 0.7-inch DLP® chip 786,432 pixels (1,024 x 768)
Color reproduction Full color (16.77 million colors)
RGB Display resolution XGA Real (1,024 x 768)
Compressed: Maximum UXGA (1,600 x 1,200)
Input terminal RGB mini D-Sub 15 pin x 2
(Also serves as YCbCr/YPbPr input terminal.)
Output terminal RGB mini D-Sub 15 pin x 1
Digital input Input terminal HDMI Type A x 1 (480P ~ 1080P)
Video input Signal system NTSC/PAL/PAL-N/PAL-M/PAL60/SECAM
Input terminal Composite (RCA) terminal x 1,
S-Video terminal x 1,
Component: Also serves as RGB mini D-Sub 15 pin.
Audio Input/output terminal RCA x 1 (R/L), Stereo mini-jack x 2
Speaker 10W monaural
Other
terminals
USB host USB (2.0-compliant) Type A x 1 (USB terminal on rear)**2
USB function*3 USB (2.0-compliant) Type B x 1 (USB terminal on rear)
Control terminal RS-232C (mini D-Sub 9 pin) x 1
LAN terminal RJ-45 x 1
Wireless compatibility IEEE 802.11b/g*4 MobiShow® compatible
Power source AC 100V ~ 240V, 50/60Hz
Power consumption Operating power: 350W (with Eco Mode “Eco 1” selected), 430W (with Eco Mode Off “Bright” selected) / Standby power consumption: 0.4W*5
External dimensions (WxHxD) 420 x 106 x 323mm (including projections)
Weight 7.1kg
Remote controller Wireless remote controller
Security compatibility Kensington-compatible, Power-on password
Other functions DLP® 3D projection, Intelligent Brightness Control, Interactive pointing function (XJ-H1650 only), Closed captioning, Direct power-ON, Direct power-OFF, Digital zoom (2X), Rear projection, Freeze, Pointer, Color mode, Eco mode, Blank, Ceiling mount*6
Main accessories Wireless remote controller / AC power cord / RGB cable / Instruction manual (on CD-ROM)*7 / Quick reference / Warranty card / Soft case

*1 Eco Mode Off "Bright" projection
*2 Connectable equipment: Wireless module for wireless connection; Multi-projection camera YC-430/400 (Note, however, that a higher version of multi-projection camera firmware may be required when connecting a multi-projection camera directly to the projector.); CASIO digital cameras /USB memory (commercially available, but compatibility with all USB memory devices not assured; compatible digital camera models and confirmed-compatible USB memory devices to be published on the CASIO Web site)
*3 For use with the interactive pointing function
*4 A wireless module that attaches to the USB terminal on the rear of the projector body is supplied.
*5 Except when connected to a network
*6 Metal ceiling-mount fittings required; installation work charged separately.
*7 Accessory software provided on CD-ROM is compatible with Windows® 7 (32/64 bit), Windows Vista® (32/64 bit) and Windows® XP SP3.

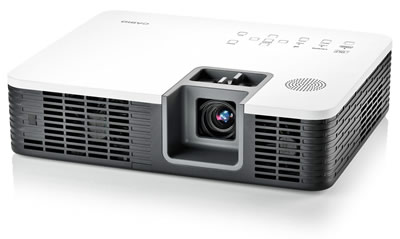

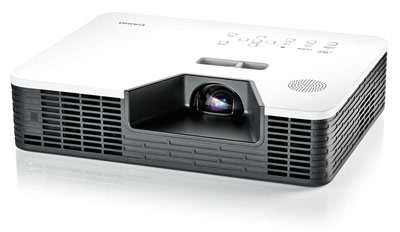

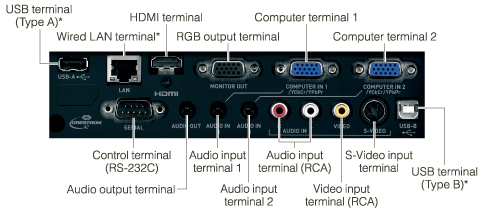

Casio XJ-H1650 Projector Casio XJ-ST155 Projector Casio XJ-H1650 Connectivity Casio XJ-H1650 Mercury Free
